一个固定尺度的模块，能够支持多少种空间关系？What spatial relationships can emerge from one module?
项目以 3 × 3 × 3.5 m 模块为基本单位，通过旋转、组合和构件选择发展不同住宅空间。这里聚焦暑期发展版本的形体与户型推演，从单元内部组织延伸到建筑群与城市街区的关系。Using a 3 × 3 × 3.5 m module, the study develops dwelling spaces through rotation, combination and component selection. This page focuses on the summer development’s formal and dwelling-type studies, moving from internal arrangements to larger assemblies within the neighbourhood.

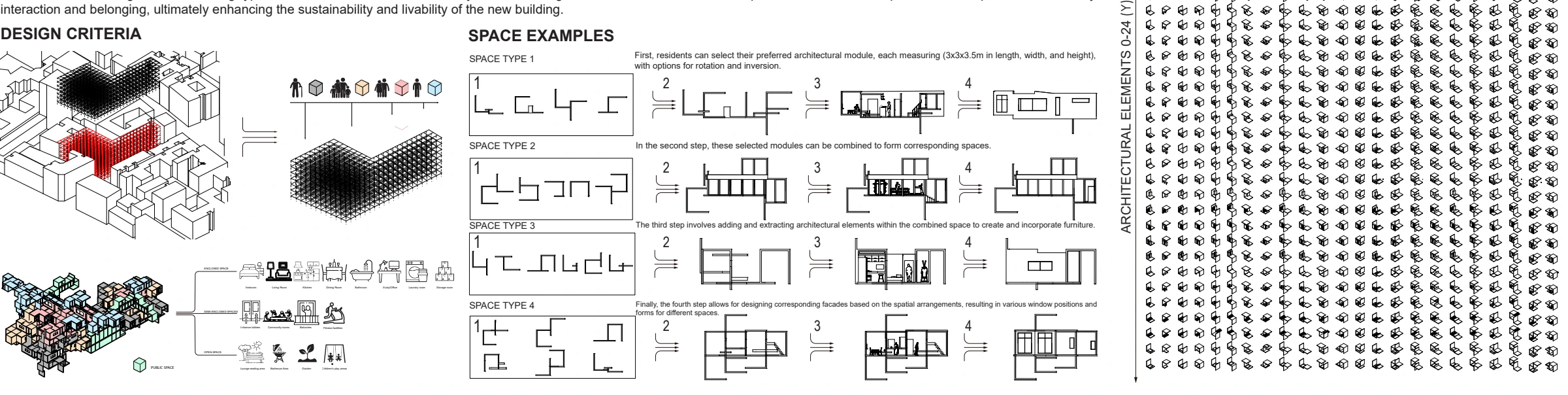

定义模块与操作Defining a module and its operations
设计从固定尺度的模块开始，讨论选择、旋转、翻转与组合的不同可能。门窗和其他构件继续细化空间边界，操作序列把形体生成的过程直接呈现出来。The design begins with a module of fixed dimensions, exploring selection, rotation, inversion and combination. Openings and additional components further define spatial boundaries. The sequence makes the process of generating form explicit.

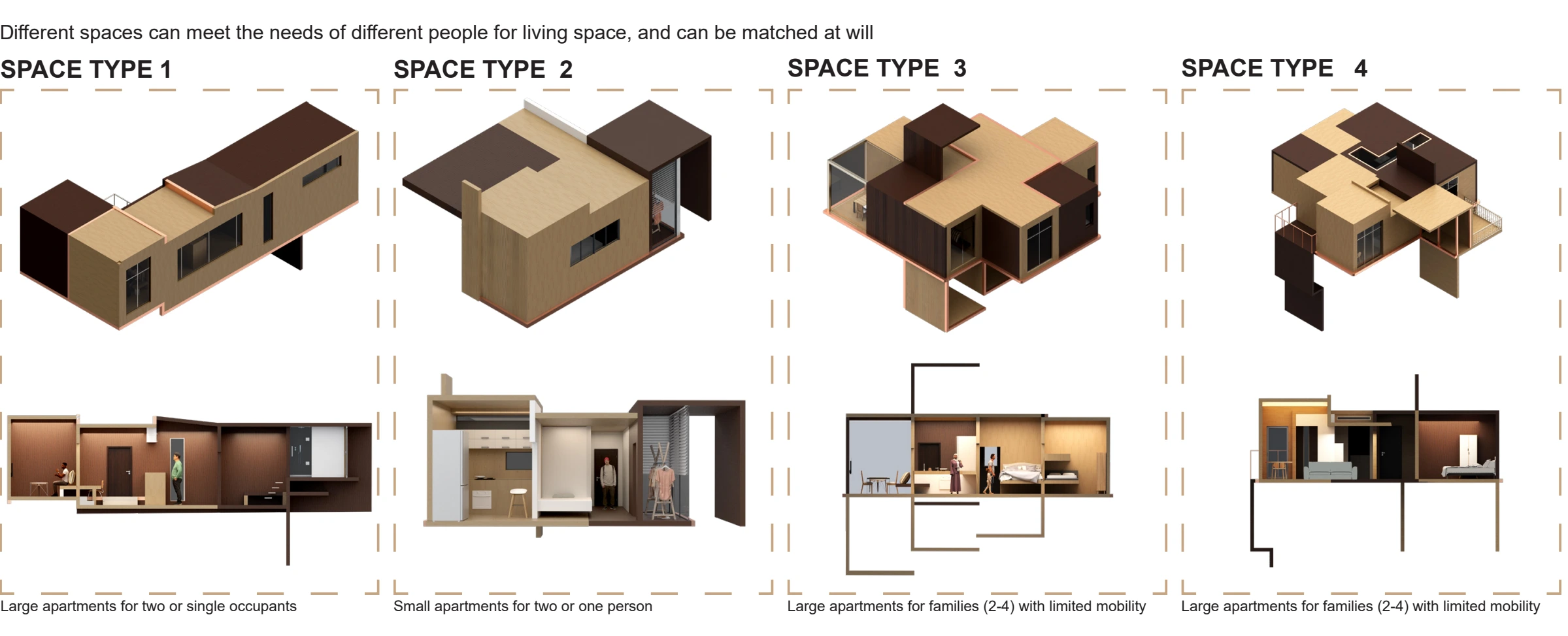

从单元组合到户型From assemblies to dwelling types
户型图展示单个模块在不同组合下形成的开敞、半围合与围合空间。平剖面和体块并置，用于比较生活、休息和共享活动的位置，而不是将同一户型重复铺满建筑。Dwelling studies show how module combinations produce open, semi-enclosed and enclosed spaces. Plans, sections and massing compare the positions of living, resting and shared activities, exploring alternatives to repeating a single dwelling type throughout a building.

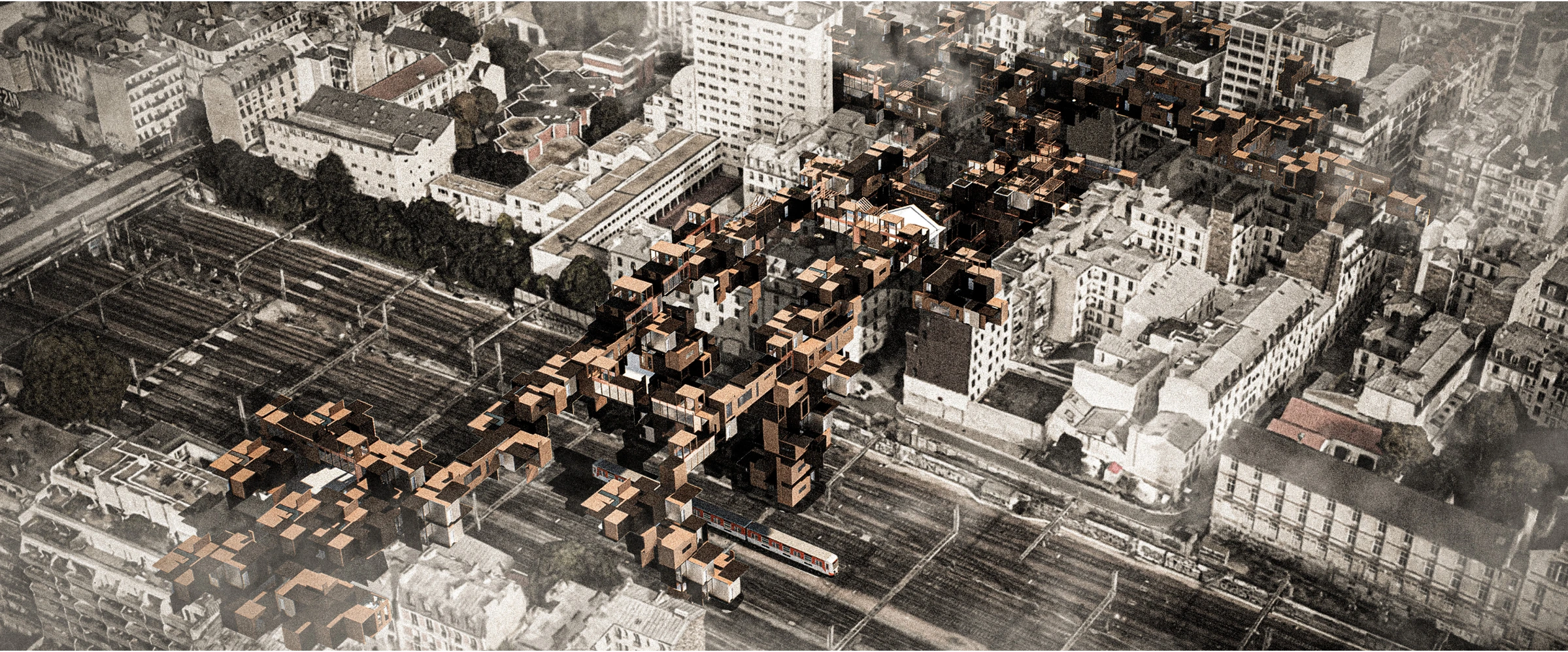

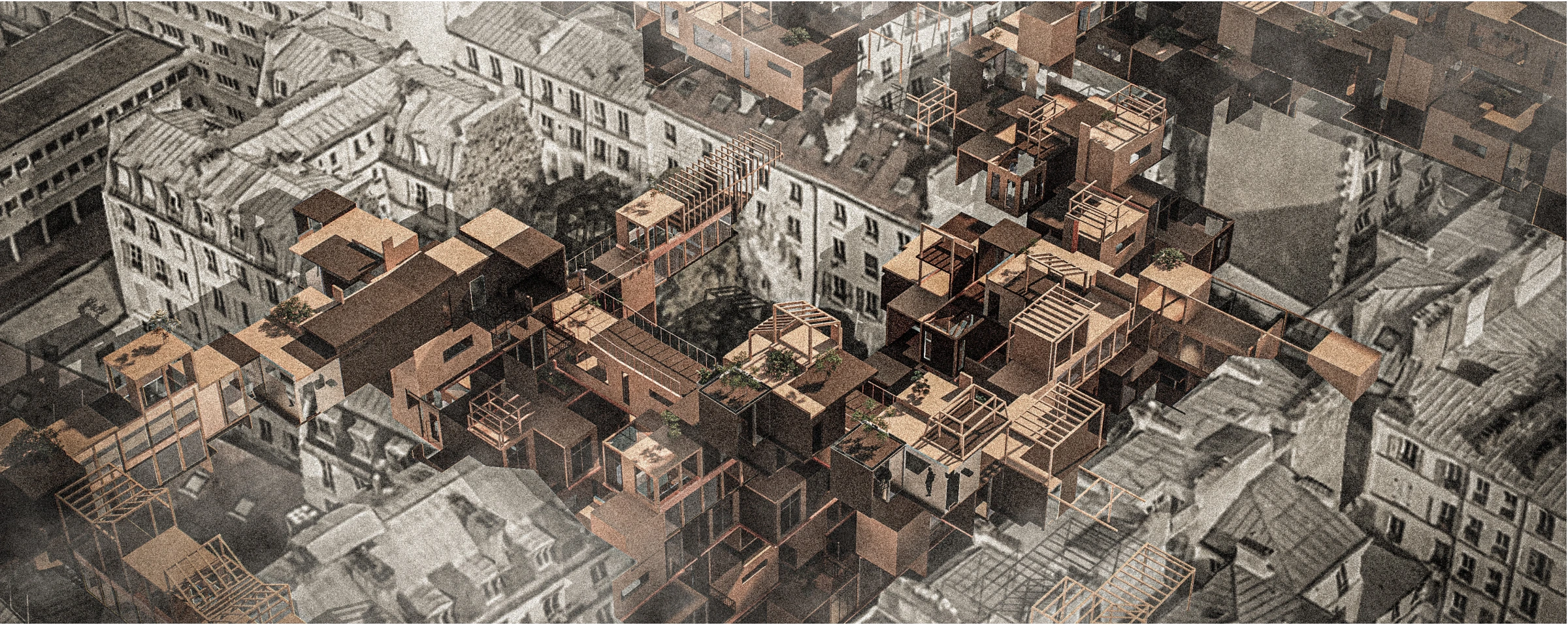

把组合放回街区Returning the assembly to the neighbourhood
城市视角将住宅单元嵌入较大的街区图景，观察组合密度、层叠关系与共享空间。这一版本呈现的是模块化住宅的设计推演，重点在构成方法与空间差异。Urban views place the units within a larger neighbourhood, examining density, layering and shared spaces. This version presents a modular housing design study centred on methods of assembly and spatial variation.
项目信息Credits
爱丁堡大学 ESALA · Architectural Design: Any Place · 暑期个人发展；本页展示模块与户型研究ESALA, University of Edinburgh · Architectural Design: Any Place · Individual summer development; module and dwelling studies
住宅课程基础上的个人模块、户型与组合研究Individual module, dwelling-type and assembly studies developed from housing coursework
