历史建筑外墙

改善历史外墙的热工表现时，如何同时理解材料代价与保护要求？How can improvements to historic walls account for both material impacts and conservation needs?

这篇论文以 South Bridge Resource and Education Centre、Jenners Building 和 Holyrood Park Lodge 为案例，研究历史建筑外墙的保温方式与材料环境负担。工作从公开改造文件及文献中整理墙体层次，计算热工表现，再借助 EcoTool 指标与加权比较讨论不同构造的取舍。研究对象是选定墙段，关注如何在延续石质外观和既有建筑特征的同时，理解新增材料对性能与环境影响的作用。This dissertation examines insulation and material-related environmental impacts through South Bridge Resource and Education Centre, the Jenners Building and Holyrood Park Lodge. Wall assemblies are reconstructed from published refurbishment documents and literature, assessed through thermal calculations, and compared using EcoTool indicators and a weighting framework. The study focuses on selected wall sections, asking how additional materials affect performance while retaining stone exteriors and existing architectural character.

三个建筑，三种改造情境Three buildings, three retrofit contexts

案例选择考虑历史价值、建筑用途与构造差异。South Bridge 是由学校发展而来的社区和教育空间；Jenners 代表大型商业建筑的更新；Holyrood Park Lodge 则提供小型旧住宅转用的参照。资料包括提交市议会的设计与说明文件、已有改造报告以及现场照片。建筑用途和规模建立比较背景，而墙体层次与材料是实际计算的对象；这些改造项目由各自的设计团队完成，本论文承担资料分析与研究。Case selection considers historic value, use and construction. South Bridge represents a former school serving community and educational functions; Jenners provides a large commercial refurbishment case; Holyrood Park Lodge offers a smaller former residential building. Sources include planning design statements, refurbishment reports and site photography. Use and scale establish the context, while wall layers and materials form the calculation inputs. The refurbishment projects belong to their respective design teams; the dissertation contributes comparative research and analysis.

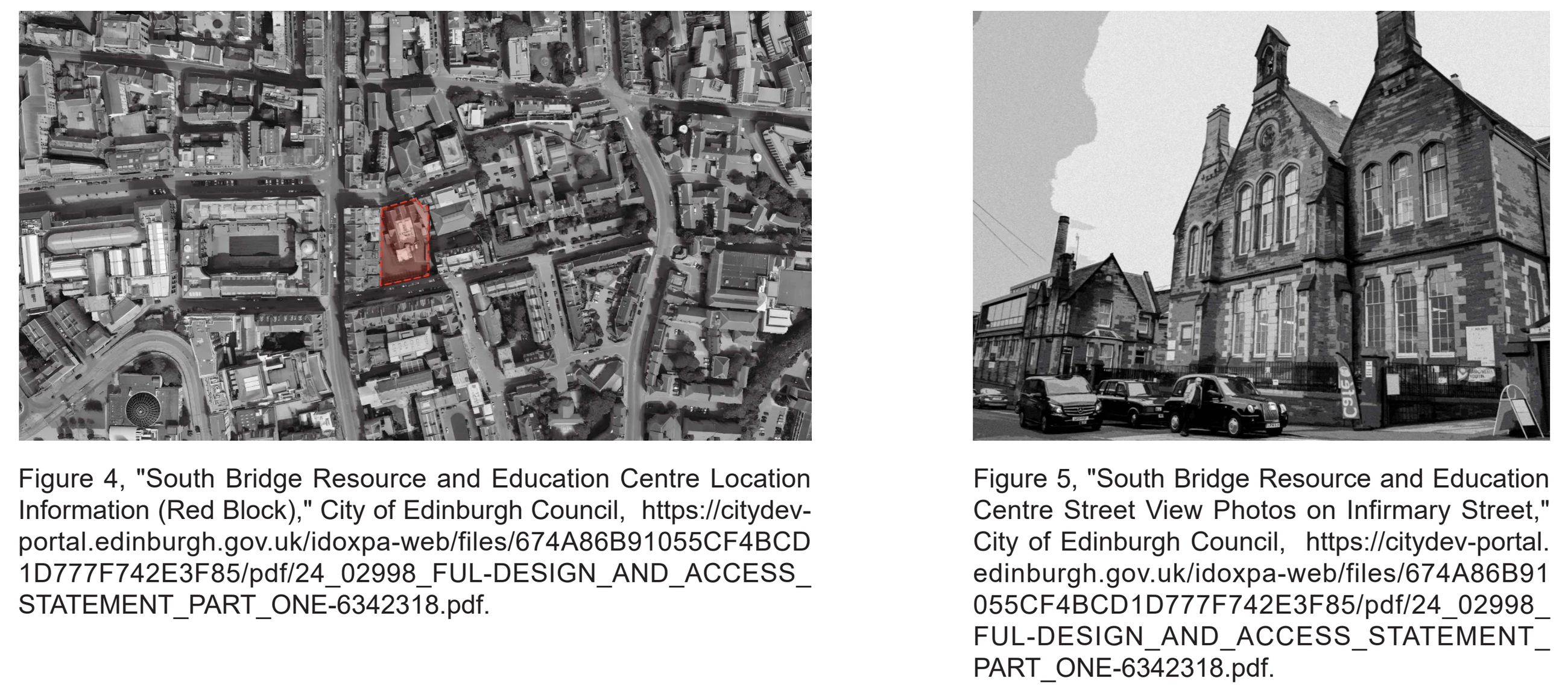

South Bridge 的位置与街景。论文引用图 4–5，来源为提交爱丁堡市议会的设计与说明文件；原图注完整保留。引用图：City of Edinburgh Council / Studio LBA 设计与说明文件，论文图 4–5。 / South Bridge location and street view. Cited Figures 4–5 from the Design and Access Statement submitted to the City of Edinburgh Council; original captions retained. Reference imagery: City of Edinburgh Council / Studio LBA Design and Access Statement, dissertation Figures 4–5. — South Bridge 的位置与街景。论文引用图 4–5，来源为提交爱丁堡市议会的设计与说明文件；原图注完整保留。引用图：City of Edinburgh Council / Studio LBA 设计与说明文件，论文图 4–5。South Bridge location and street view. Cited Figures 4–5 from the Design and Access Statement submitted to the City of Edinburgh Council; original captions retained. Reference imagery: City of Edinburgh Council / Studio LBA Design and Access Statement, dissertation Figures 4–5.点击放大Enlarge image ↗

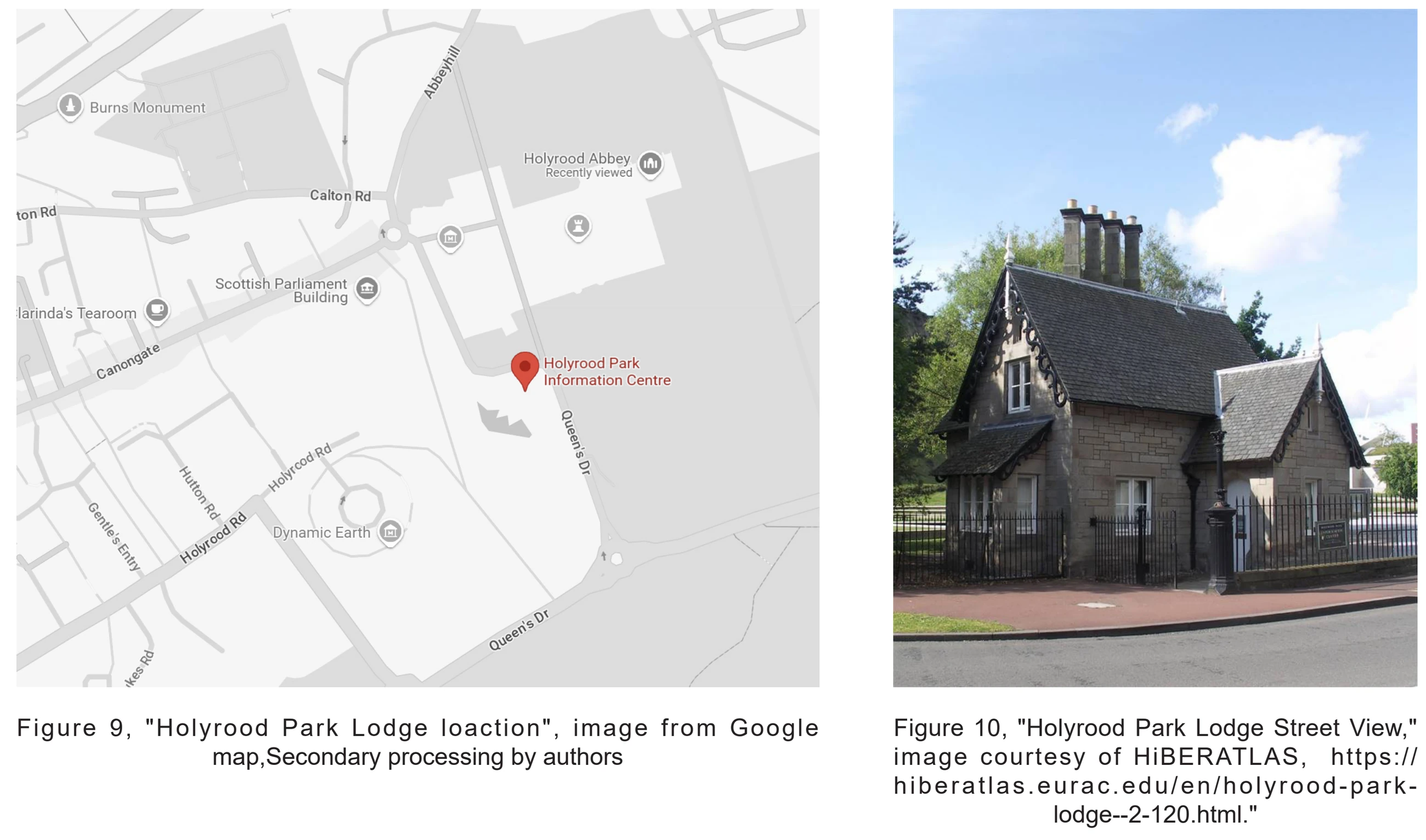

Holyrood Park Lodge 的位置与建筑外观。论文引用图 9–10：Google 地图经作者标注，建筑照片来自 HiBERATLAS。引用图：Google Maps（作者二次处理）、HiBERATLAS，论文图 9–10。 / Holyrood Park Lodge location and exterior. Cited Figures 9–10: Google map annotated by the author, with a building photograph from HiBERATLAS. Reference imagery: Google Maps, processed by the author, and HiBERATLAS; dissertation Figures 9–10. — Holyrood Park Lodge 的位置与建筑外观。论文引用图 9–10：Google 地图经作者标注，建筑照片来自 HiBERATLAS。引用图：Google Maps（作者二次处理）、HiBERATLAS，论文图 9–10。Holyrood Park Lodge location and exterior. Cited Figures 9–10: Google map annotated by the author, with a building photograph from HiBERATLAS. Reference imagery: Google Maps, processed by the author, and HiBERATLAS; dissertation Figures 9–10.点击放大Enlarge image ↗

从资料到比较框架From source documents to a comparison framework

研究首先记录材料、厚度与导热参数，通过各层热阻估算墙体 U 值；再以 EcoTool 对材料相关温室气体排放、隐含能耗（grey energy）等环境指标作筛选性估算。论文使用熵权法生成权重，并以线性加权组合热工、环境与构造指标。这种方法把不同量纲放入同一比较过程，也使结果依赖于案例数据、材料映射和指标选择。评价针对墙段，未以建筑运行监测或整栋能耗模型验证实际节能量。The study records materials, thicknesses and conductivity values, using layer resistances to estimate wall U-values. EcoTool then provides screening estimates of material-related greenhouse-gas emissions, grey energy and other environmental indicators. Entropy weighting and a linear weighted sum combine thermal, environmental and assembly criteria. This brings unlike indicators into a shared comparison, while making the outcome dependent on case data, material mapping and indicator selection. The assessment is at wall-section scale, without measured operational savings or a whole-building energy model.

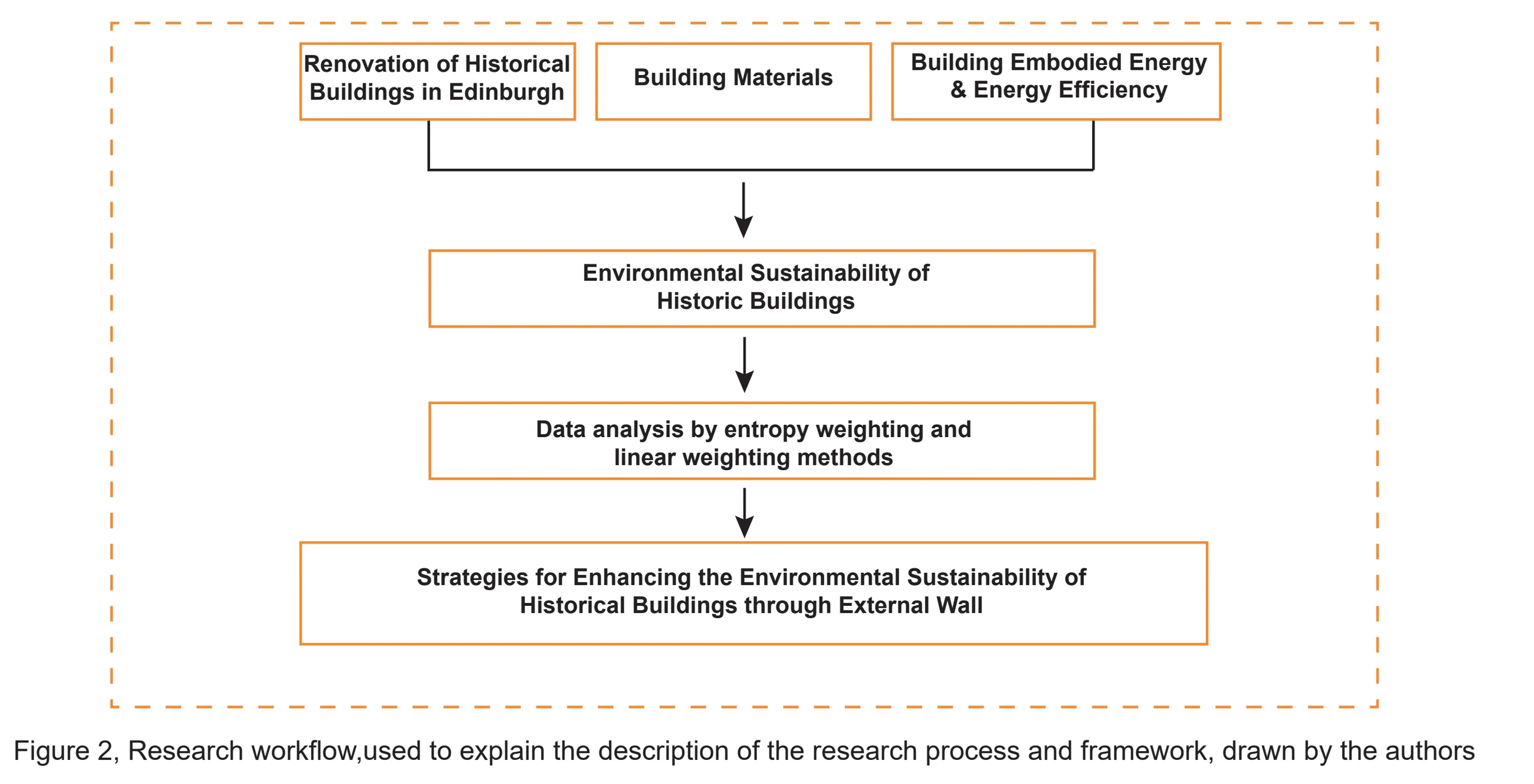

研究框架把历史建筑、材料及环境表现引入熵权与线性加权比较。论文图 2，由作者绘制。 / The research framework connects historic buildings, materials and environmental performance to entropy and linear weighting. Dissertation Figure 2, drawn by the author. — 研究框架把历史建筑、材料及环境表现引入熵权与线性加权比较。论文图 2，由作者绘制。The research framework connects historic buildings, materials and environmental performance to entropy and linear weighting. Dissertation Figure 2, drawn by the author.点击放大Enlarge image ↗

保留石墙，改变内侧层次Retaining stone while changing the inner layers

构造重绘将三个案例的石质外墙与新增内侧层次放在一起阅读。论文模型中的 South Bridge 采用大麻纤维保温及刚性保温组合；Jenners 比较聚苯乙烯与岩棉等保温层；Holyrood Park Lodge 则以纤维素内保温和石灰抹灰为主要研究线索。图中保留各案例的原有尺寸和图例，展示层次安排的差别。比较表明，热工表现与材料环境负担并不总是同步改善，因此研究结论应回到各自构造和模型假设理解。The redrawn assemblies place the retained stone walls alongside their additional internal layers. In the dissertation models, South Bridge combines hemp-based and rigid insulation; Jenners includes polystyrene and mineral-wool insulation layers; Holyrood Park Lodge is studied through cellulose internal insulation and lime plaster. Original dimensions and legends remain visible to show differences in assembly. The comparison illustrates that thermal performance and material-related environmental impacts do not necessarily improve together, so findings must be interpreted within each construction and its modelling assumptions.

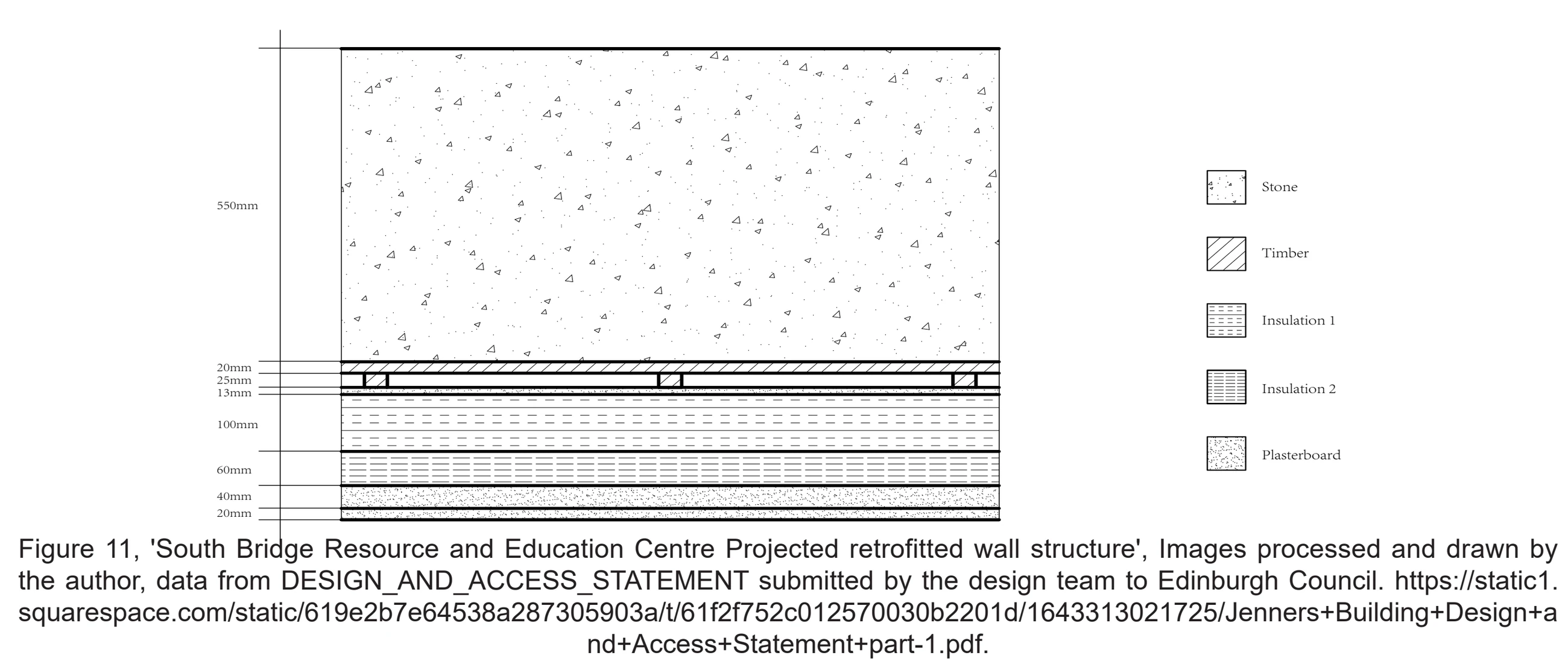

South Bridge 墙体分层重绘。论文图 11，作者依据既有设计资料整理；为案例研究图，保留原尺寸与图例。作者依据项目资料重绘，论文图 11。原图注的引用链接指向 Jenners 项目资料，出处需复核。 / Redrawn South Bridge wall layers. Dissertation Figure 11, prepared by the author from existing design information; a case-study drawing with original dimensions and legend retained. Author redrawing from project information, dissertation Figure 11. The original caption links to Jenners project documents; the source attribution needs checking. — South Bridge 墙体分层重绘。论文图 11，作者依据既有设计资料整理；为案例研究图，保留原尺寸与图例。作者依据项目资料重绘，论文图 11。原图注的引用链接指向 Jenners 项目资料，出处需复核。Redrawn South Bridge wall layers. Dissertation Figure 11, prepared by the author from existing design information; a case-study drawing with original dimensions and legend retained. Author redrawing from project information, dissertation Figure 11. The original caption links to Jenners project documents; the source attribution needs checking.点击放大Enlarge image ↗

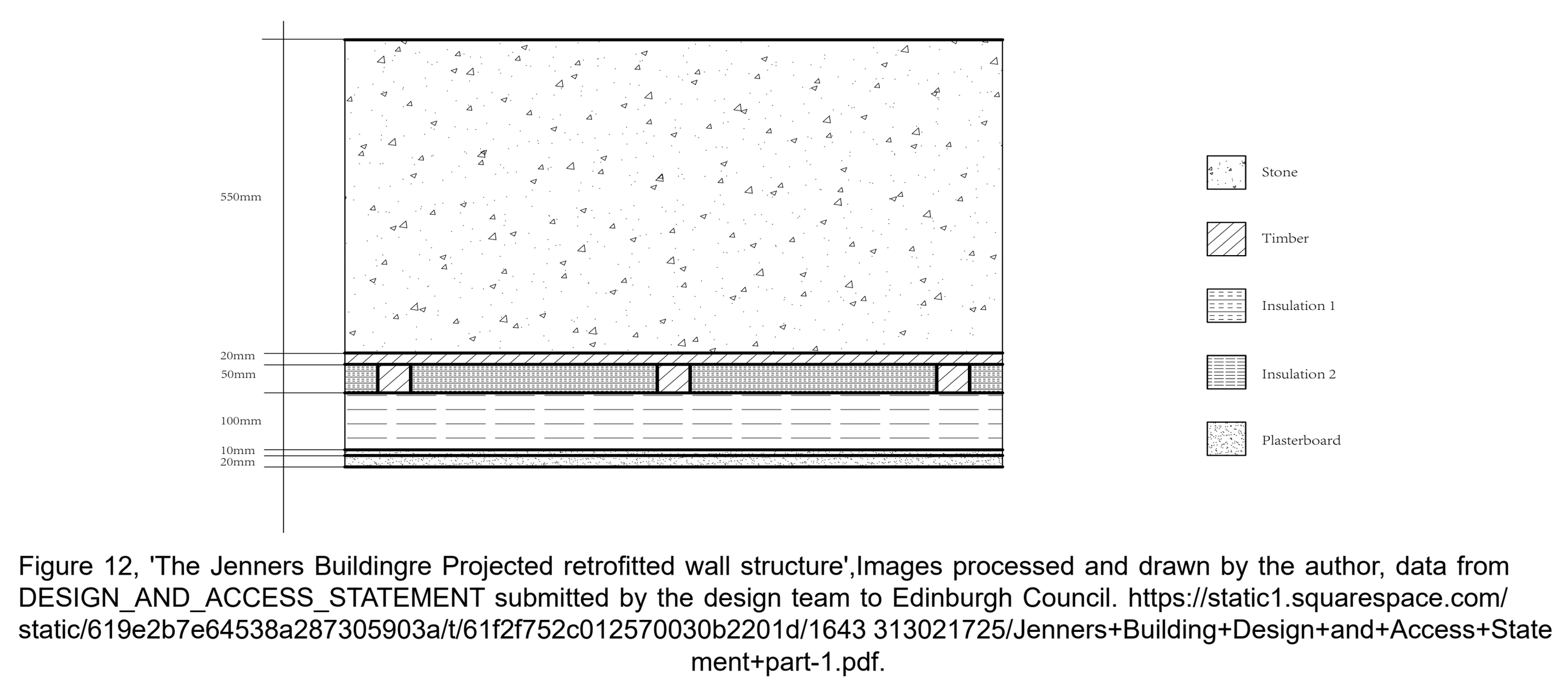

Jenners 墙体分层重绘。论文图 12，作者依据项目设计与说明文件整理，比较保温、空腔与内侧面层。 / Redrawn Jenners wall layers. Dissertation Figure 12, prepared by the author from the project Design and Access Statement, comparing insulation, cavities and internal finishes. — Jenners 墙体分层重绘。论文图 12，作者依据项目设计与说明文件整理，比较保温、空腔与内侧面层。Redrawn Jenners wall layers. Dissertation Figure 12, prepared by the author from the project Design and Access Statement, comparing insulation, cavities and internal finishes.点击放大Enlarge image ↗

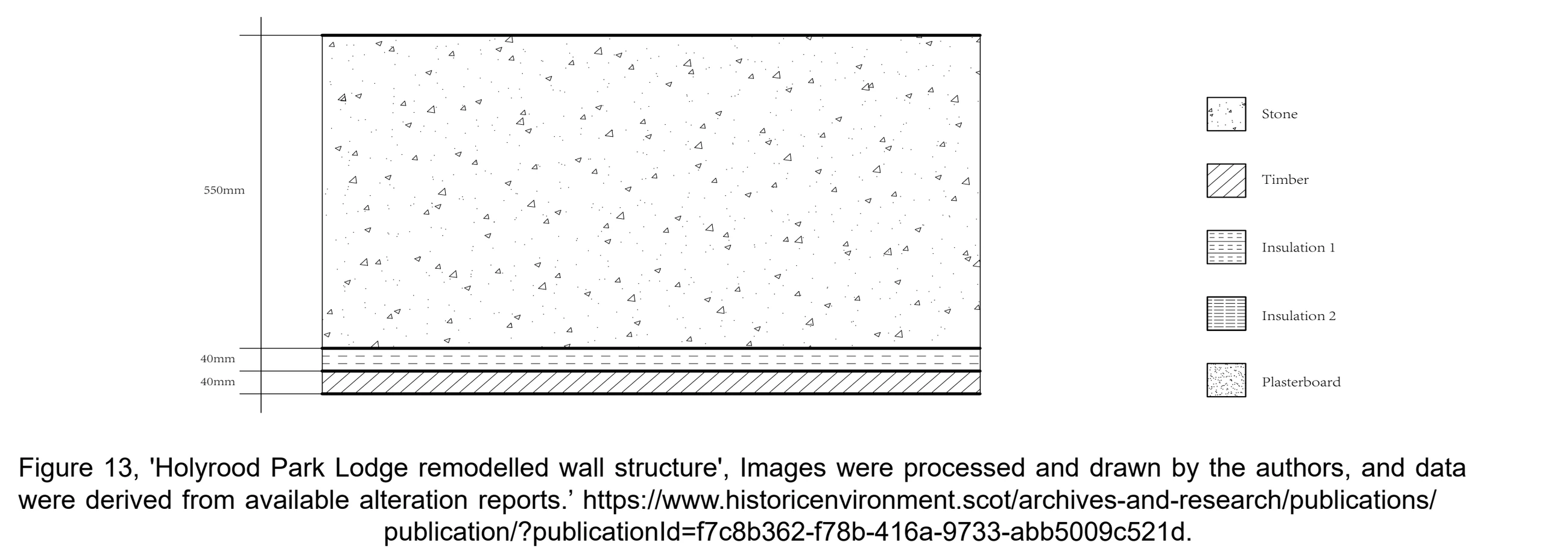

Holyrood Park Lodge 墙体重绘。论文图 13，作者依据改造报告整理，用于与另外两处墙体构造进行比较。作者依据 Historic Environment Scotland 改造报告重绘，论文图 13。 / Redrawn Holyrood Park Lodge wall. Dissertation Figure 13, prepared by the author from the refurbishment report for comparison with the other two assemblies. Author redrawing based on the Historic Environment Scotland refurbishment report, dissertation Figure 13. — Holyrood Park Lodge 墙体重绘。论文图 13，作者依据改造报告整理，用于与另外两处墙体构造进行比较。作者依据 Historic Environment Scotland 改造报告重绘，论文图 13。Redrawn Holyrood Park Lodge wall. Dissertation Figure 13, prepared by the author from the refurbishment report for comparison with the other two assemblies. Author redrawing based on the Historic Environment Scotland refurbishment report, dissertation Figure 13.点击放大Enlarge image ↗

研究建议与适用范围Research implications and limits

讨论把保温放回更完整的改造问题：材料兼容性、湿度与通风、施工安排，以及历史外观的延续。综合墙体图表达论文由案例比较形成的构造设想，所列厚度并非普遍适用的施工标准。研究样本较少，计算限于选定墙段，尚不能证明整栋建筑的运行表现或长期湿热安全。原文部分汇总数值与附录存在差异，因此页面以方法、构造和定性取舍为重点，具体数值仍需结合原始计算复核。The discussion places insulation within the wider retrofit problem: material compatibility, moisture and ventilation, construction arrangements and the retention of historic character. The synthesis drawing records a proposal developed from the case comparison; its thicknesses are not general construction standards. The small sample and wall-section calculations do not establish whole-building operational performance or long-term hygrothermal safety. Some summary values differ from the appendices, so this presentation emphasises methods, assemblies and qualitative trade-offs; numerical applications require checking against the original calculations.

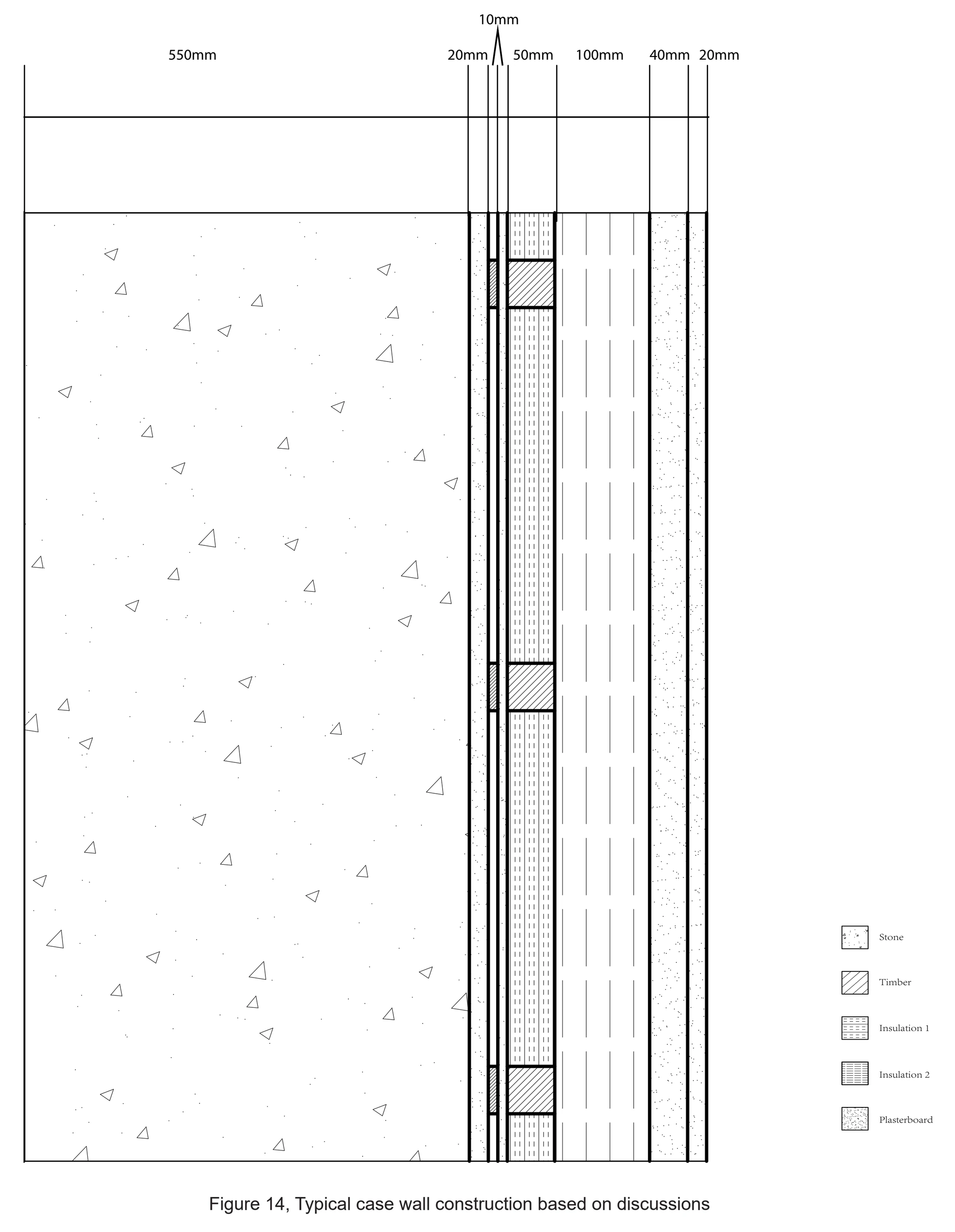

论文讨论形成的综合墙体示意（图 14）。图中尺寸表达这项研究的构造设想，不作为通用施工标准。 / Wall-assembly synthesis from the dissertation discussion, Figure 14. Its dimensions describe the study proposal and do not establish a general construction standard. — 论文讨论形成的综合墙体示意（图 14）。图中尺寸表达这项研究的构造设想，不作为通用施工标准。Wall-assembly synthesis from the dissertation discussion, Figure 14. Its dimensions describe the study proposal and do not establish a general construction standard.点击放大Enlarge image ↗

论文信息Paper information

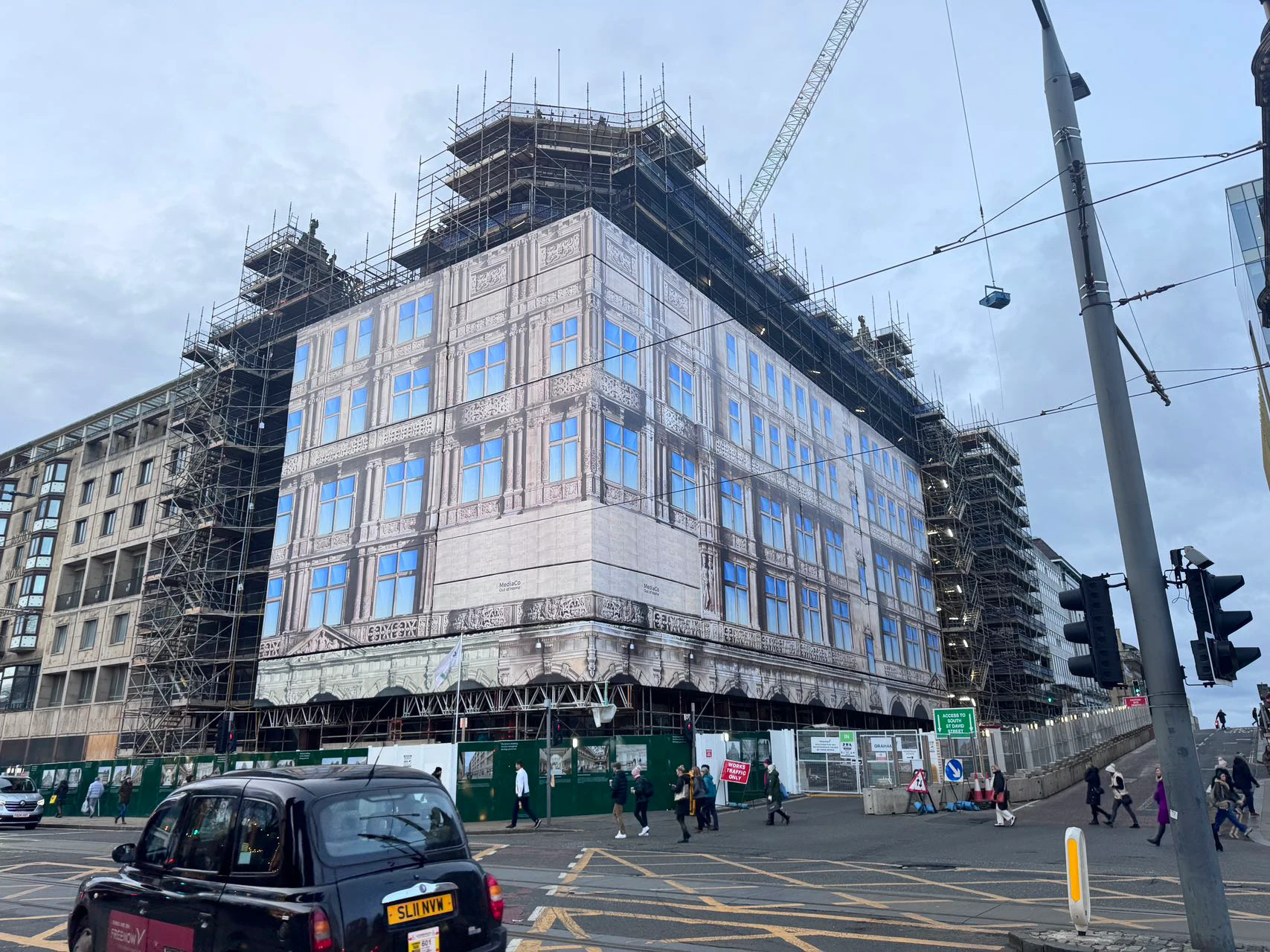

论文研究与写作：Xingzeng Zheng，爱丁堡大学 ESALA。导师：Irem Serefoglu。案例依据项目设计与说明文件及 Historic Environment Scotland 等公开资料整理；引用地图、照片与作者重绘分别标注来源。Jenners 现场照片在原文图 8 中明确署为作者摄影。Dissertation research and writing: Xingzeng Zheng, ESALA, University of Edinburgh. Supervisor: Irem Serefoglu. Cases draw on project design statements and published sources including Historic Environment Scotland; reference maps, photographs and author redrawings are credited separately. The Jenners site photograph is explicitly credited to the author in Figure 8.

文献与案例研究、构造重绘、热工计算及论文写作Literature and case research, wall redrawing, thermal calculations and dissertation writing

全文、参考文献与计算附录共同呈现这项墙段尺度的比较研究。网页保留原始图版及其出处，不将研究建议改写为经验证的改造标准。The full text, bibliography and calculation appendices document a comparative study at wall-section scale. The website retains the source figures and credits without converting research suggestions into validated retrofit standards.
